Fixed Picture Window
AT Fixed Aluminium Window
Frame the view
overview
Frame the view
AT Fixed is designed for maximum transparency. With no operable hardware, the frame can be engineered to ultra-slim profiles while maintaining structural integrity for oversized glazing.
features
Key features
01
Ultra-slim sightlines
02
Structural silicone option
03
Curved or faceted configurations
04
Double or triple glazing
05
Thermal break standard
06
Concealed fixing option
technical
Specifications
Max Panel Size 3,500 × 2,800 mm
Frame Depth 60–70 mm
U-Value 1.3 W/m²K (triple)
Acoustic Rating Up to Rw 47 dB
Wind Resistance Class C5 (EN 12210)
gallery

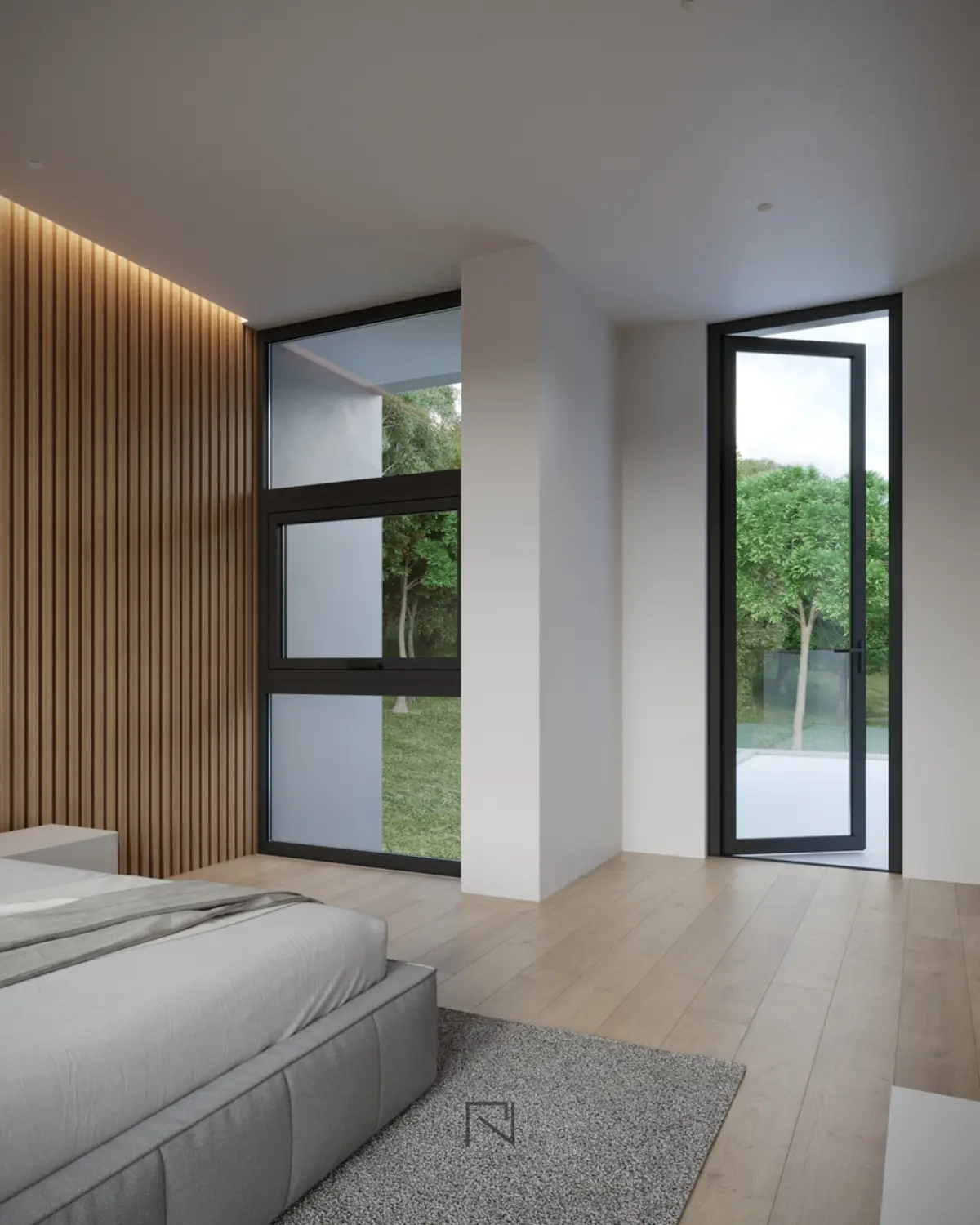

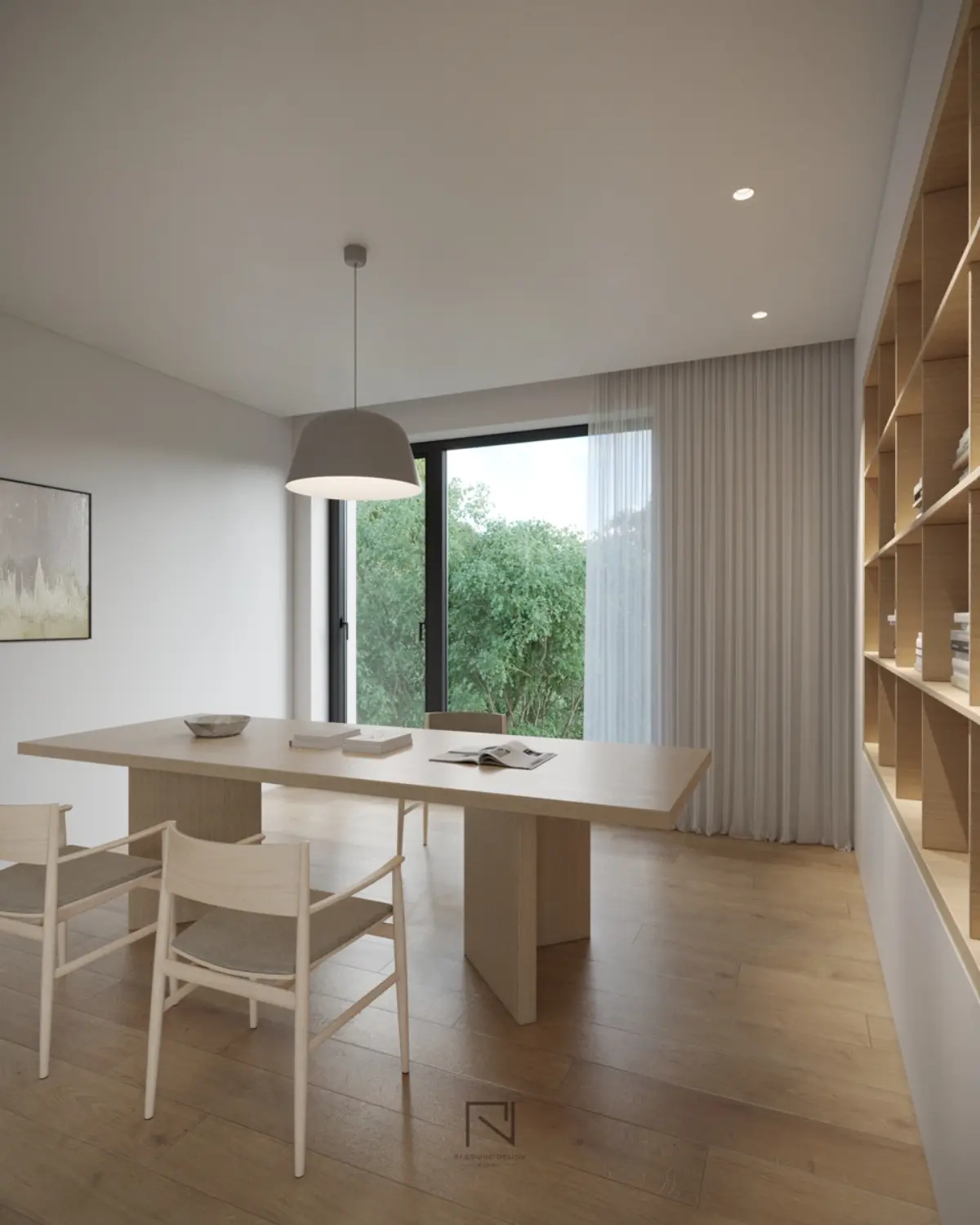

Project imagery
faq
Common questions
Can AT Fixed be combined with operable windows?
Yes. AT Fixed is often paired with AT Casement or AT Sliding units to create large glazed walls with strategic ventilation points.
Is AT Fixed suitable for curtain walling?
Yes. The system can be integrated into stick or unitized curtain wall configurations with structural silicone bonding.
